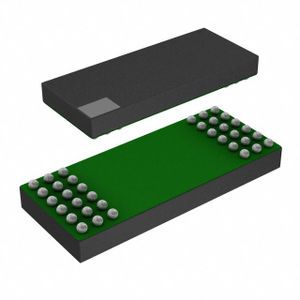

LTM2895IY#PBF
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | Analog Devices |
| Package | 36-BGA |
| Datasheet | LTM2895 Datasheet |
| Description | SPI Digital Isolator 6000Vrms 9 Channel 100Mbps 50kV/µs CMTI 36-BGA |
فروشنده های LTM2895IY#PBF
فروشگاهی یافت نشد
مشخصات LTM2895IY#PBF
- RoHS true
- Category Communication Interface Chip/UART/485/232/Digital Isolators
- Data Rate 100Mbps
- Datasheet Analog Devices LTM2895IY#PBF
- Applications SPI
- Supply Voltage 3V~5.5V
- Forward Channel 8
- Reverse channel 4
- Number of Channels 9
- Isolation Technology Magnetic isolation
- Operating Temperature -40°C~+85°C
- Voltage Isolation or Not Without voltage isolation
- Package BGA-36
- Manufacturer Analog Devices
- Series -
- Packaging Tray
- Part Status Active
- Technology Magnetic Coupling
- Type SPI
- Isolated Power No
- Inputs - Side 1/Side 2 8/4
- Channel Type Bidirectional, Unidirectional
- Voltage - Isolation 6000Vrms
- Common Mode Transient Immunity (Min) 50kV/µs
- Propagation Delay tpLH / tpHL (Max) 150ns, 150ns
- Pulse Width Distortion (Max) -
- Rise / Fall Time (Typ) 10ns, 10ns
- Voltage - Supply 3V ~ 5.5V
- Mounting Type Surface Mount
- Package / Case 36-BGA
- Supplier Device Package 36-BGA (15x6.25)
- Base Part Number LTM2895
- detail SPI Digital Isolator 6000Vrms 9 Channel 100Mbps 50kV/µs CMTI 36-BGA
