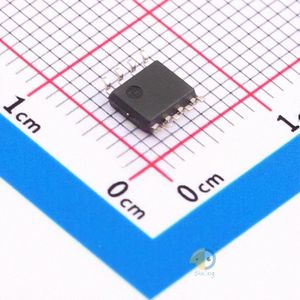

FDS86240
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | onsemi |
| Package | 8-SOIC (0.154", 3.90mm Width) |
| Datasheet | FDS86240 |
| Description | N-Channel 150V 7.5A (Ta) 2.5W (Ta), 5W (Tc) Surface Mount 8-SOIC |
فروشنده های FDS86240
فروشگاهی یافت نشد
تغییرات قیمت
مشخصات FDS86240
- RoHS true
- Category Triode/MOS Tube/Transistor/MOSFETs
- Datasheet onsemi FDS86240
- Operating Temperature -55°C~+150°C@(Tj)
- Power Dissipation (Pd) 2.5W;5W
- Total Gate Charge (Qg@Vgs) 40nC@10V
- Drain Source Voltage (Vdss) 150V
- Input Capacitance (Ciss@Vds) 2570pF@75V
- Continuous Drain Current (Id) 7.5A
- Gate Threshold Voltage (Vgs(th)@Id) 4V@250uA
- Reverse Transfer Capacitance (Crss@Vds) -
- Drain Source On Resistance (RDS(on)@Vgs,Id) 19.8mΩ@7.5A,10V
- Package SOP-8
- Manufacturer onsemi
- Series PowerTrench®
- Packaging Cut Tape (CT)
- Part Status Active
- FET Type N-Channel
- Technology MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss) 150V
- Current - Continuous Drain (Id) @ 25°C 7.5A (Ta)
- Drive Voltage (Max Rds On, Min Rds On) 6V, 10V
- Rds On (Max) @ Id, Vgs 19.8mOhm @ 7.5A, 10V
- Vgs(th) (Max) @ Id 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs 40nC @ 10V
- Vgs (Max) ±20V
- Input Capacitance (Ciss) (Max) @ Vds 2570pF @ 75V
- FET Feature -
- Power Dissipation (Max) 2.5W (Ta), 5W (Tc)
- Mounting Type Surface Mount
- Supplier Device Package 8-SOIC
- Package / Case 8-SOIC (0.154", 3.90mm Width)
- Base Part Number FDS86
- detail N-Channel 150V 7.5A (Ta) 2.5W (Ta), 5W (Tc) Surface Mount 8-SOIC
