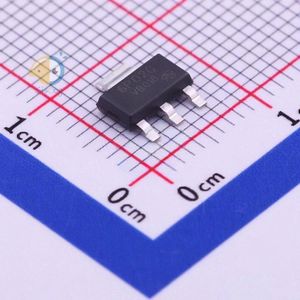

NTF6P02T3G
در 0 فروشگاه
قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | ON Semiconductor |
| Package | TO-261-4, TO-261AA |
| Datasheet | NTF6P02, NVF6P02 |
| Description | P-Channel 20V 10A (Ta) 8.3W (Ta) Surface Mount SOT-223 |
sellers NTF6P02T3G
فروشگاهی یافت نشد
تغییرات قیمت
مشخصات
- Manufacturer ON Semiconductor
- Series -
- Packaging Cut Tape (CT)
- Part Status Active
- FET Type P-Channel
- Technology MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss) 20V
- Current - Continuous Drain (Id) @ 25°C 10A (Ta)
- Drive Voltage (Max Rds On, Min Rds On) 2.5V, 4.5V
- Rds On (Max) @ Id, Vgs 50mOhm @ 6A, 4.5V
- Vgs(th) (Max) @ Id 1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs 20nC @ 4.5V
- Vgs (Max) ±8V
- Input Capacitance (Ciss) (Max) @ Vds 1200pF @ 16V
- FET Feature -
- Power Dissipation (Max) 8.3W (Ta)
- Operating Temperature -55°C ~ 150°C (TJ)
- Mounting Type Surface Mount
- Supplier Device Package SOT-223
- Package / Case TO-261-4, TO-261AA
- Base Part Number NTF6P
- detail P-Channel 20V 10A (Ta) 8.3W (Ta) Surface Mount SOT-223
