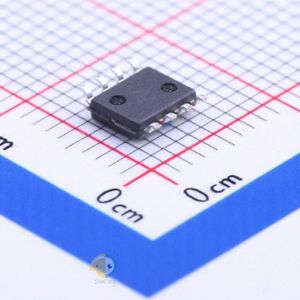

NCP5104DR2G
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | onsemi |
| Package | 8-SOIC (0.154", 3.90mm Width) |
| Datasheet | NCP5104 |
| Description | Half-Bridge Gate Driver IC Non-Inverting 8-SOIC |
فروشنده های NCP5104DR2G
فروشگاهی یافت نشد
تغییرات قیمت
مشخصات NCP5104DR2G
- RoHS true
- Category Power Supply Chip/Gate Drive ICs
- Datasheet onsemi NCP5104DR2G
- Fall Time 35ns
- Load Type IGBT;MOSFET
- Rise Time 85ns
- Supply Voltage 10V~20V
- Number of Drivers 2
- Driven Configuration Half Bridge
- Operating Temperature -40°C~+125°C@(Tj)
- Peak Output Current(sink) 500mA
- Peak Output Current(source) 250mA
- Package SOP-8
- Manufacturer onsemi
- Series -
- Packaging Cut Tape (CT)
- Part Status Active
- Channel Type Synchronous
- Gate Type IGBT, N-Channel MOSFET
- Voltage - Supply 10V ~ 20V
- Logic Voltage - VIL, VIH 0.8V, 2.3V
- Current - Peak Output (Source, Sink) 250mA, 500mA
- Input Type Non-Inverting
- High Side Voltage - Max (Bootstrap) 600V
- Rise / Fall Time (Typ) 85ns, 35ns
- Mounting Type Surface Mount
- Package / Case 8-SOIC (0.154", 3.90mm Width)
- Supplier Device Package 8-SOIC
- Base Part Number NCP5104
- detail Half-Bridge Gate Driver IC Non-Inverting 8-SOIC
