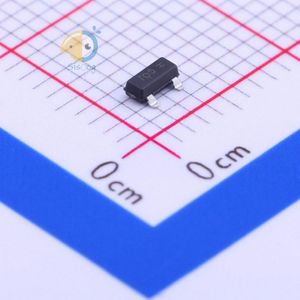

NTR5105PT1G
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | onsemi |
| Package | TO-236-3, SC-59, SOT-23-3 |
| Datasheet | NTR5105P |
| Description | P-Channel 60V 196mA (Ta) 347mW (Ta) Surface Mount SOT-23-3 (TO-236) |
فروشنده های NTR5105PT1G
فروشگاهی یافت نشد
تغییرات قیمت
مشخصات NTR5105PT1G
- RoHS true
- Type P Channel
- Category Triode/MOS Tube/Transistor/MOSFETs
- Datasheet onsemi NTR5105PT1G
- Operating Temperature -55°C~+150°C@(Tj)
- Power Dissipation (Pd) 347mW
- Total Gate Charge (Qg@Vgs) 1nC@5V
- Drain Source Voltage (Vdss) 60V
- Input Capacitance (Ciss@Vds) 30.3pF@25V
- Continuous Drain Current (Id) 196mA
- Gate Threshold Voltage (Vgs(th)@Id) 3V@250uA
- Drain Source On Resistance (RDS(on)@Vgs,Id) 5Ω@10V,100mA
- Package SOT-23-3
- Manufacturer onsemi
- Series -
- Packaging Cut Tape (CT)
- Part Status Active
- FET Type P-Channel
- Technology MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss) 60V
- Current - Continuous Drain (Id) @ 25°C 196mA (Ta)
- Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
- Rds On (Max) @ Id, Vgs 5Ohm @ 100mA, 10V
- Vgs(th) (Max) @ Id 3V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs 1nC @ 5V
- Vgs (Max) ±20V
- Input Capacitance (Ciss) (Max) @ Vds 30.3pF @ 25V
- FET Feature -
- Power Dissipation (Max) 347mW (Ta)
- Mounting Type Surface Mount
- Supplier Device Package SOT-23-3 (TO-236)
- Package / Case TO-236-3, SC-59, SOT-23-3
- Base Part Number NTR510
- detail P-Channel 60V 196mA (Ta) 347mW (Ta) Surface Mount SOT-23-3 (TO-236)
