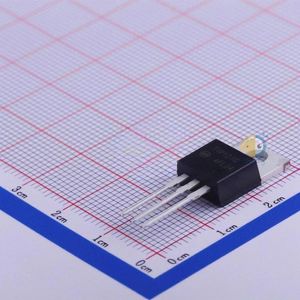

TIP127G
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | onsemi |
| Package | TO-220-3 |
| Datasheet | TIP120-22, TIP125-27 |
| Description | Bipolar (BJT) Transistor PNP - Darlington 100V 5A 2W Through Hole TO-220AB |
فروشنده های TIP127G
فروشگاهی یافت نشد
مشخصات TIP127G
- RoHS true
- Category Triode/MOS Tube/Transistor/Darlington Transistors
- Datasheet onsemi TIP127G
- Transistor Type PNP
- Operating Temperature -65°C~+150°C@(Tj)
- Collector Current (Ic) 5A
- Power Dissipation (Pd) 2W
- Transition frequency (fT) -
- DC current gain (hFE@Vce,Ic) 1000@3V,3A
- Collector-emitter voltage (Vceo) 100V
- Collector cut-off current (Icbo@Vcb) 500uA
- Collector-emitter saturation voltage (VCE(sat)@Ic,Ib) 4V@5A,20mA
- Package TO-220
- Manufacturer onsemi
- Series -
- Packaging Tube
- Part Status Active
- Current - Collector (Ic) (Max) 5A
- Voltage - Collector Emitter Breakdown (Max) 100V
- Vce Saturation (Max) @ Ib, Ic 4V @ 20mA, 5A
- Current - Collector Cutoff (Max) 500µA
- DC Current Gain (hFE) (Min) @ Ic, Vce 1000 @ 3A, 3V
- Power - Max 2W
- Frequency - Transition -
- Mounting Type Through Hole
- Package / Case TO-220-3
- Supplier Device Package TO-220AB
- Base Part Number TIP127
- detail Bipolar (BJT) Transistor PNP - Darlington 100V 5A 2W Through Hole TO-220AB
