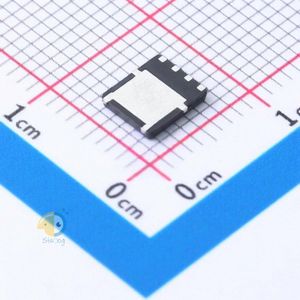

NVMFS5C460NLAFT1G
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | onsemi |
| Package | 8-PowerTDFN, 5 Leads |
| Datasheet | NVMFS5C460NL |
| Description | N-Channel 40V 21A (Ta), 78A (Tc) 3.6W (Ta), 50W (Tc) Surface Mount 5-DFN (5x6) (8-SOFL) |
فروشنده های NVMFS5C460NLAFT1G
فروشگاهی یافت نشد
تغییرات قیمت
مشخصات NVMFS5C460NLAFT1G
- RoHS true
- Type N Channel
- Category Triode/MOS Tube/Transistor/MOSFETs
- Datasheet onsemi NVMFS5C460NLAFT1G
- Operating Temperature -55°C~+175°C@(Tj)
- Power Dissipation (Pd) 50W
- Total Gate Charge (Qg@Vgs) 11nC@4.5V
- Drain Source Voltage (Vdss) 40V
- Input Capacitance (Ciss@Vds) 1.3nF@25V
- Continuous Drain Current (Id) 78A
- Gate Threshold Voltage (Vgs(th)@Id) 2V@40uA
- Reverse Transfer Capacitance (Crss@Vds) 22pF@25V
- Drain Source On Resistance (RDS(on)@Vgs,Id) 3.7mΩ@10V,35A
- Package DFN-5(5.9x4.9)
- Manufacturer onsemi
- Series Automotive, AEC-Q101
- Packaging Cut Tape (CT)
- Part Status Active
- FET Type N-Channel
- Technology MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss) 40V
- Current - Continuous Drain (Id) @ 25°C 21A (Ta), 78A (Tc)
- Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
- Rds On (Max) @ Id, Vgs 4.5mOhm @ 35A, 10V
- Vgs(th) (Max) @ Id 2V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs 23nC @ 10V
- Vgs (Max) ±20V
- Input Capacitance (Ciss) (Max) @ Vds 1300pF @ 25V
- FET Feature -
- Power Dissipation (Max) 3.6W (Ta), 50W (Tc)
- Mounting Type Surface Mount
- Supplier Device Package 5-DFN (5x6) (8-SOFL)
- Package / Case 8-PowerTDFN, 5 Leads
- Base Part Number NVMFS5
- detail N-Channel 40V 21A (Ta), 78A (Tc) 3.6W (Ta), 50W (Tc) Surface Mount 5-DFN (5x6) (8-SOFL)
