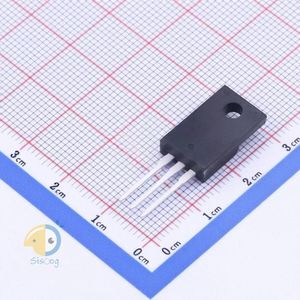

2SC6082-1E
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | onsemi |
| Package | TO-220-3 Full Pack |
| Datasheet | 2SC6082 |
| Description | Bipolar (BJT) Transistor NPN 50V 15A 195MHz 2W Through Hole TO-220F-3SG |
فروشنده های 2SC6082-1E
فروشگاهی یافت نشد
مشخصات 2SC6082-1E
- RoHS true
- Category Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
- Datasheet onsemi 2SC6082-1E
- Transistor Type NPN
- Operating Temperature +150°C@(Tj)
- Collector Current (Ic) 15A
- Power Dissipation (Pd) 23W
- Transition Frequency (fT) 195MHz
- DC Current Gain (hFE@Ic,Vce) 200@330mA,2V
- Collector Cut-Off Current (Icbo) 10uA
- Collector-Emitter Breakdown Voltage (Vceo) 50V
- Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib) 200mV@7.5A,175mA
- Package TO-220F-3
- Manufacturer onsemi
- Series -
- Packaging Tube
- Part Status Active
- Current - Collector (Ic) (Max) 15A
- Voltage - Collector Emitter Breakdown (Max) 50V
- Vce Saturation (Max) @ Ib, Ic 400mV @ 375mA, 7.5A
- Current - Collector Cutoff (Max) 10µA (ICBO)
- DC Current Gain (hFE) (Min) @ Ic, Vce 200 @ 330mA, 2V
- Power - Max 2W
- Frequency - Transition 195MHz
- Mounting Type Through Hole
- Package / Case TO-220-3 Full Pack
- Supplier Device Package TO-220F-3SG
- Base Part Number 2SC6082
- detail Bipolar (BJT) Transistor NPN 50V 15A 195MHz 2W Through Hole TO-220F-3SG
