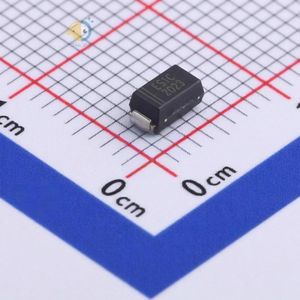

ES1C
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | MDD(Microdiode Electronics) |
| Package | DO-214AC, SMA |
| Datasheet | ES1A - ES1D |
| Description | Diode Standard 150V 1A Surface Mount SMA (DO-214AC) |
فروشنده های ES1C
فروشگاهی یافت نشد
مشخصات ES1C
- RoHS true
- Category Diodes/Diodes - Fast Recovery Rectifiers
- Datasheet MDD(Microdiode Electronics) ES1C
- Package SMA
- Manufacturer MDD(Microdiode Electronics)
- Diode Configuration Single
- Reverse Voltage (Vr) 150V
- Operating Temperature -55°C~+150°C@(Tj)
- Forward Voltage (Vf@If) 1V@1A
- Reverse Leakage Current 5uA@150V
- Reverse Recovery Time (trr) 35ns
- Average Rectified Current (Io) 1A
- Series -
- Packaging Cut Tape (CT)
- Part Status Active
- Diode Type Standard
- Voltage - DC Reverse (Vr) (Max) 150V
- Current - Average Rectified (Io) 1A
- Voltage - Forward (Vf) (Max) @ If 920mV @ 1A
- Speed Fast Recovery =< 500ns, > 200mA (Io)
- Current - Reverse Leakage @ Vr 5µA @ 150V
- Capacitance @ Vr, F 7pF @ 4V, 1MHz
- Mounting Type Surface Mount
- Package / Case DO-214AC, SMA
- Supplier Device Package SMA (DO-214AC)
- Operating Temperature - Junction -55°C ~ 150°C
- Base Part Number ES1
- detail Diode Standard 150V 1A Surface Mount SMA (DO-214AC)
