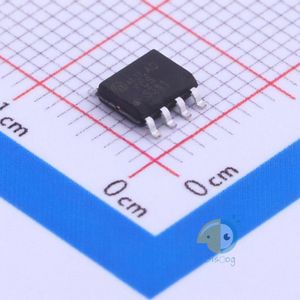

FDS5351
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | onsemi |
| Package | 8-SOIC (0.154", 3.90mm Width) |
| Datasheet | FDS5351 |
| Description | N-Channel 60V 6.1A (Ta) 5W (Ta) Surface Mount 8-SOIC |
فروشنده های FDS5351
فروشگاهی یافت نشد
تغییرات قیمت
مشخصات FDS5351
- RoHS true
- Type N Channel
- Category Triode/MOS Tube/Transistor/MOSFETs
- Datasheet onsemi FDS5351
- Operating Temperature -55°C~+150°C@(Tj)
- Power Dissipation (Pd) 5W
- Total Gate Charge (Qg@Vgs) 27nC@10V
- Drain Source Voltage (Vdss) 60V
- Input Capacitance (Ciss@Vds) 1310pF@30V
- Continuous Drain Current (Id) 6.1A
- Gate Threshold Voltage (Vgs(th)@Id) 3V@250uA
- Drain Source On Resistance (RDS(on)@Vgs,Id) 35mΩ@10V,6.1A
- Package SOP-8
- Manufacturer onsemi
- Series PowerTrench®
- Packaging Cut Tape (CT)
- Part Status Active
- FET Type N-Channel
- Technology MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss) 60V
- Current - Continuous Drain (Id) @ 25°C 6.1A (Ta)
- Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
- Rds On (Max) @ Id, Vgs 35mOhm @ 6.1A, 10V
- Vgs(th) (Max) @ Id 3V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs 27nC @ 10V
- Vgs (Max) ±20V
- Input Capacitance (Ciss) (Max) @ Vds 1310pF @ 30V
- FET Feature -
- Power Dissipation (Max) 5W (Ta)
- Mounting Type Surface Mount
- Supplier Device Package 8-SOIC
- Package / Case 8-SOIC (0.154", 3.90mm Width)
- Base Part Number FDS53
- detail N-Channel 60V 6.1A (Ta) 5W (Ta) Surface Mount 8-SOIC
