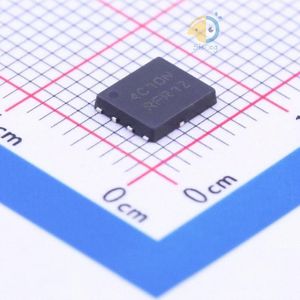

NTMFS4C10NT1G
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | onsemi |
| Package | 8-PowerTDFN |
| Datasheet | NTMFS4C10N |
| Description | N-Channel 30V 8.2A (Ta) 750mW (Ta), 23.6W (Tc) Surface Mount 5-DFN (5x6) (8-SOFL) |
فروشنده های NTMFS4C10NT1G
فروشگاهی یافت نشد
تغییرات قیمت
مشخصات NTMFS4C10NT1G
- RoHS true
- Category Triode/MOS Tube/Transistor/MOSFETs
- Datasheet onsemi NTMFS4C10NT1G
- Operating Temperature -55°C~+150°C@(Tj)
- Power Dissipation (Pd) 750mW;23.6W
- Total Gate Charge (Qg@Vgs) 9.7nC@4.5V
- Drain Source Voltage (Vdss) 30V
- Input Capacitance (Ciss@Vds) 987pF@15V
- Continuous Drain Current (Id) 8.2A
- Gate Threshold Voltage (Vgs(th)@Id) 2.2V@250uA
- Reverse Transfer Capacitance (Crss@Vds) -
- Drain Source On Resistance (RDS(on)@Vgs,Id) 6.95mΩ@30A,10V
- Package SO-8FL
- Manufacturer onsemi
- Series -
- Packaging Cut Tape (CT)
- Part Status Active
- FET Type N-Channel
- Technology MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss) 30V
- Current - Continuous Drain (Id) @ 25°C 8.2A (Ta)
- Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
- Rds On (Max) @ Id, Vgs 6.95mOhm @ 30A, 10V
- Vgs(th) (Max) @ Id 2.2V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs 9.7nC @ 4.5V
- Vgs (Max) ±20V
- Input Capacitance (Ciss) (Max) @ Vds 987pF @ 15V
- FET Feature -
- Power Dissipation (Max) 750mW (Ta), 23.6W (Tc)
- Mounting Type Surface Mount
- Supplier Device Package 5-DFN (5x6) (8-SOFL)
- Package / Case 8-PowerTDFN
- Base Part Number NTMFS4
- detail N-Channel 30V 8.2A (Ta) 750mW (Ta), 23.6W (Tc) Surface Mount 5-DFN (5x6) (8-SOFL)
