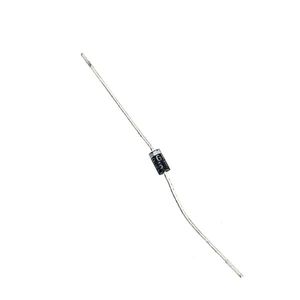

RGP10G
در 1 فروشگاه
11,100,000 تومان
| Manufacturer | onsemi |
| Package | DO-204AL, DO-41, Axial |
| Datasheet | RGP10A - RGP10M |
| Description | Diode Standard 400V 1A Through Hole DO-204AL (DO-41) |
sellers RGP10G
مشخصات
- RoHS true
- Category Diodes/Diodes - Fast Recovery Rectifiers
- Datasheet onsemi RGP10G
- Reverse Voltage (Vr) 400V
- Operating Temperature -65°C~+175°C
- Forward Voltage (Vf@If) 1.3V@1A
- Reverse Leakage Current 5uA@400V
- Package DO-41
- Manufacturer onsemi
- Series -
- Packaging Cut Tape (CT)
- Part Status Discontinued at Digi-Key
- Diode Type Standard
- Voltage - DC Reverse (Vr) (Max) 400V
- Current - Average Rectified (Io) 1A
- Voltage - Forward (Vf) (Max) @ If 1.3V @ 1A
- Speed Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr) 150ns
- Current - Reverse Leakage @ Vr 5µA @ 400V
- Capacitance @ Vr, F 15pF @ 4V, 1MHz
- Mounting Type Through Hole
- Package / Case DO-204AL, DO-41, Axial
- Supplier Device Package DO-204AL (DO-41)
- Operating Temperature - Junction -65°C ~ 175°C
- Base Part Number RGP10
- detail Diode Standard 400V 1A Through Hole DO-204AL (DO-41)
