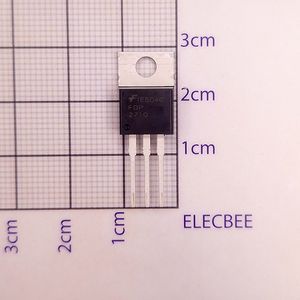

FDP2710-F085
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | onsemi |
| Package | TO-220-3 |
| Datasheet | FDP2710_F085 |
| Description | N-Channel 250V 4A (Ta) 403W (Tc) Through Hole TO-220-3 |
فروشنده های FDP2710-F085
فروشگاهی یافت نشد
مشخصات FDP2710-F085
- RoHS true
- Type -
- Category Triode/MOS Tube/Transistor/MOSFETs
- Datasheet onsemi FDP2710-F085
- Power Dissipation (Pd) -
- Total Gate Charge (Qg@Vgs) -
- Drain Source Voltage (Vdss) -
- Input Capacitance (Ciss@Vds) -
- Continuous Drain Current (Id) -
- Gate Threshold Voltage (Vgs(th)@Id) -
- Reverse Transfer Capacitance (Crss@Vds) -
- Drain Source On Resistance (RDS(on)@Vgs,Id) -
- Package TO-220AB-3
- Manufacturer onsemi
- Series Automotive, AEC-Q101, PowerTrench®
- Packaging Tube
- Part Status Active
- FET Type N-Channel
- Technology MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss) 250V
- Current - Continuous Drain (Id) @ 25°C 4A (Ta)
- Drive Voltage (Max Rds On, Min Rds On) 10V
- Rds On (Max) @ Id, Vgs 47mOhm @ 50A, 10V
- Vgs(th) (Max) @ Id 5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs 101nC @ 10V
- Vgs (Max) ±30V
- Input Capacitance (Ciss) (Max) @ Vds 5690pF @ 25V
- FET Feature -
- Power Dissipation (Max) 403W (Tc)
- Operating Temperature -55°C ~ 150°C (TJ)
- Mounting Type Through Hole
- Supplier Device Package TO-220-3
- Package / Case TO-220-3
- Base Part Number FDP27
- detail N-Channel 250V 4A (Ta) 403W (Tc) Through Hole TO-220-3
