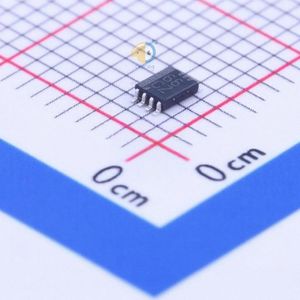

SN74LVC2G66DCUR
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | Texas Instruments |
| Package | 8-VFSOP (0.091", 2.30mm Width) |
| Datasheet | SN74LVC2G66 |
| Description | 2 Circuit IC Switch 1:1 10Ohm 8-VSSOP |
فروشنده های SN74LVC2G66DCUR
فروشگاهی یافت نشد
تغییرات قیمت
مشخصات SN74LVC2G66DCUR
- RoHS true
- Category Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
- Datasheet Texas Instruments SN74LVC2G66DCUR
- Package VSSOP-8
- Manufacturer Texas Instruments
- Package / Case 8-VFSOP (0.091", 2.30mm Width)
- Series -
- Switch Time (Ton, Toff) (Max) 3.9ns, 6.3ns
- Supplier Device Package 8-VSSOP
- Channel Capacitance (CS(off), CD(off)) 6pF
- Number of Circuits 2
- Channel-to-Channel Matching (ΔRon) 2Ohm (Max)
- -3db Bandwidth 300MHz
- Charge Injection -
- Multiplexer/Demultiplexer Circuit 1:1
- Packaging Cut Tape (CT)
- Voltage - Supply, Single (V+) 1.65V ~ 5.5V
- Voltage - Supply, Dual (V±) -
- Base Part Number SN74LVC2G
- On-State Resistance (Max) 10Ohm
- Operating Temperature -40°C ~ 85°C (TA)
- Mounting Type Surface Mount
- Current - Leakage (IS(off)) (Max) 100nA
- Crosstalk -58dB @ 1MHz
- Part Status Active
- Switch Circuit SPST - NO
- detail 2 Circuit IC Switch 1:1 10Ohm 8-VSSOP
