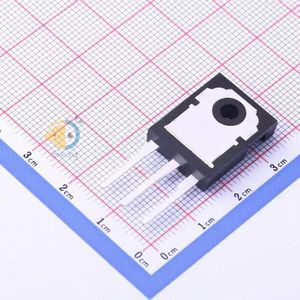

STW15N80K5
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | STMicroelectronics |
| Package | TO-247-3 |
| Datasheet | STx15N80K5 |
| Description | N-Channel 800V 14A (Tc) 190W (Tc) Through Hole TO-247 |
فروشنده های STW15N80K5
فروشگاهی یافت نشد
تغییرات قیمت
مشخصات STW15N80K5
- RoHS true
- Category Triode/MOS Tube/Transistor/MOSFETs
- Datasheet STMicroelectronics STW15N80K5
- Operating Temperature -55°C~+150°C@(Tj)
- Power Dissipation (Pd) 190W
- Total Gate Charge (Qg@Vgs) 32nC@10V
- Drain Source Voltage (Vdss) 800V
- Input Capacitance (Ciss@Vds) 1100pF@100V
- Continuous Drain Current (Id) 14A
- Gate Threshold Voltage (Vgs(th)@Id) 5V@100uA
- Drain Source On Resistance (RDS(on)@Vgs,Id) 375mΩ@7A,10V
- Package TO-247
- Manufacturer STMicroelectronics
- Series SuperMESH5™
- Packaging Tube
- Part Status Active
- FET Type N-Channel
- Technology MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss) 800V
- Current - Continuous Drain (Id) @ 25°C 14A (Tc)
- Drive Voltage (Max Rds On, Min Rds On) 10V
- Rds On (Max) @ Id, Vgs 375mOhm @ 7A, 10V
- Vgs(th) (Max) @ Id 5V @ 100µA
- Gate Charge (Qg) (Max) @ Vgs 32nC @ 10V
- Vgs (Max) ±30V
- Input Capacitance (Ciss) (Max) @ Vds 1100pF @ 100V
- FET Feature -
- Power Dissipation (Max) 190W (Tc)
- Mounting Type Through Hole
- Supplier Device Package TO-247
- Package / Case TO-247-3
- Base Part Number STW15N
- detail N-Channel 800V 14A (Tc) 190W (Tc) Through Hole TO-247
