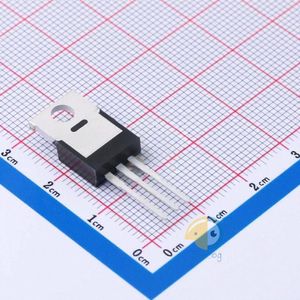

CSD18533KCS

CSD18533KCS

CSD18533KCS

در 0 فروشگاه

قیمت هنوز مشخص نشده است

این محصول در حال حاضر فروشنده ای ندارد!

مشخصات فنی:
Manufacturer Texas Instruments
Package TO-220-3
Datasheet CSD18533KCS
Description N-Channel 60V 72A (Ta), 100A (Tc) 192W (Tc) Through Hole TO-220-3

sellers CSD18533KCS

فروشگاهی یافت نشد

پالت

تغییرات قیمت

پالت

مشخصات

  • RoHS true
  • Category Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet Texas Instruments CSD18533KCS
  • Operating Temperature -55°C~+175°C@(Tj)
  • Power Dissipation (Pd) 192W
  • Total Gate Charge (Qg@Vgs) 34nC@10V
  • Input Capacitance (Ciss@Vds) 3025pF@30V
  • Continuous Drain Current (Id) 72A;100A
  • Gate Threshold Voltage (Vgs(th)@Id) 2.3V@250uA
  • Drain Source On Resistance (RDS(on)@Vgs,Id) 6.3mΩ@75A,10V
  • Package TO-220
  • Manufacturer Texas Instruments
  • Power Dissipation (Max) 192W (Tc)
  • Drain to Source Voltage (Vdss) 60V
  • Rds On (Max) @ Id, Vgs 6.3mOhm @ 75A, 10V
  • Vgs (Max) ±20V
  • FET Type N-Channel
  • Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
  • Technology MOSFET (Metal Oxide)
  • Current - Continuous Drain (Id) @ 25°C 72A (Ta), 100A (Tc)
  • FET Feature -
  • Input Capacitance (Ciss) (Max) @ Vds 3025pF @ 30V
  • Packaging Tube
  • Package / Case TO-220-3
  • Part Status Active
  • Series NexFET™
  • Vgs(th) (Max) @ Id 2.3V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs 34nC @ 10V
  • Supplier Device Package TO-220-3
  • Mounting Type Through Hole
  • Base Part Number CSD1853
  • detail N-Channel 60V 72A (Ta), 100A (Tc) 192W (Tc) Through Hole TO-220-3
