HSP051-4M10
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | STMicroelectronics |

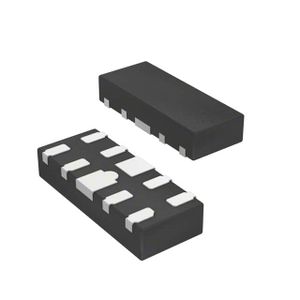

| Package | 10-XFDFN |
| Datasheet | HSP051-4M10 |
| Description | 10V Clamp 1A (8/20µs) Ipp Tvs Diode Surface Mount 10-UQFN (2.5x1) |
فروشنده های HSP051-4M10
فروشگاهی یافت نشد
مشخصات HSP051-4M10
- RoHS true
- Category TVS/Fuse/Board Level Protection/ESD Protection Devices
- Datasheet STMicroelectronics HSP051-4M10
- Clamping Voltage@Ipp 10V
- Operating Temperature -40°C~+150°C@(Tj)
- Breakdown Voltage (VBR) 4.5V
- Peak Pulse Power(Ppp)@8/20us -
- Junction Capacitance(Cj)@1MHz -
- Peak Pulse Current(Ipp)@8/20us 1A@(8/20us)
- Reverse Stand-Off Voltage (Vrwm) 3.6V
- Package USON-10(1x2.5)
- Manufacturer STMicroelectronics
- Series HSP
- Packaging Cut Tape (CT)
- Part Status Active
- Type Steering (Rail to Rail)
- Unidirectional Channels 4
- Voltage - Reverse Standoff (Typ) 3.6V
- Voltage - Breakdown (Min) 4.5V
- Voltage - Clamping (Max) @ Ipp 10V
- Current - Peak Pulse (10/1000µs) 1A (8/20µs)
- Power - Peak Pulse -
- Power Line Protection Yes
- Applications HDMI
- Capacitance @ Frequency 0.4pF @ 200MHz ~ 2.5GHz
- Mounting Type Surface Mount
- Package / Case 10-XFDFN
- Supplier Device Package 10-UQFN (2.5x1)
- Base Part Number HSP051
- detail 10V Clamp 1A (8/20µs) Ipp Tvs Diode Surface Mount 10-UQFN (2.5x1)
