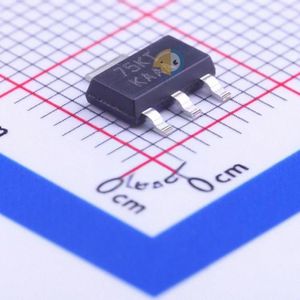

LM2936MP-5.0/NOPB
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | Texas Instruments |
| Package | TO-261-4, TO-261AA |
| Datasheet | LM2936 Datasheet |
| Description | Linear Voltage Regulator IC 1 Output 50mA SOT-223-4 |
فروشنده های LM2936MP-5.0/NOPB
فروشگاهی یافت نشد
مشخصات LM2936MP-5.0/NOPB
- RoHS true
- Category Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet Texas Instruments LM2936MP-5.0/NOPB
- Output Type Fixed
- Output Current 50mA
- Output Voltage 5V
- Dropout Voltage 120mV@(50mA)
- Output Polarity Positive
- Number of Outputs 1
- Maximum Input Voltage 40V
- Power Supply Rejection Ratio (PSRR) 60dB@(120Hz)
- Package SOT-223
- Manufacturer Texas Instruments
- Voltage Dropout (Max) 0.12V @ 50mA
- Current - Supply (Max) 2.5mA
- Current - Output 50mA
- Current - Quiescent (Iq) 9µA
- Voltage - Input (Max) 40V
- Base Part Number LM2936
- Operating Temperature -40°C ~ 125°C
- Package / Case TO-261-4, TO-261AA
- Voltage - Output (Max) -
- Output Configuration Positive
- Series -
- Supplier Device Package SOT-223-4
- PSRR 60dB (120Hz)
- Part Status Not For New Designs
- Mounting Type Surface Mount
- Control Features -
- Protection Features Over Temperature, Reverse Polarity, Short Circuit
- Voltage - Output (Min/Fixed) 5V
- Number of Regulators 1
- Packaging Cut Tape (CT)
- detail Linear Voltage Regulator IC 1 Output 50mA SOT-223-4
