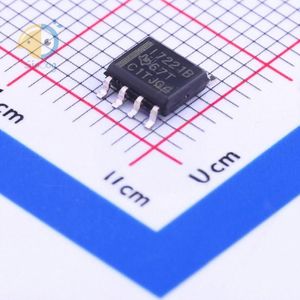

ISO7221BDR
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | Texas Instruments |
| Package | 8-SOIC (0.154", 3.90mm Width) |
| Datasheet | ISO7220-21A/B/C/M |
| Description | General Purpose Digital Isolator 2500Vrms 2 Channel 5Mbps 25kV/µs CMTI 8-SOIC (0.154", 3.90mm Width) |
فروشنده های ISO7221BDR
فروشگاهی یافت نشد
تغییرات قیمت
مشخصات ISO7221BDR
- RoHS true
- Category Communication Interface Chip/UART/485/232/Digital Isolators
- Data Rate 5Mbps
- Datasheet Texas Instruments ISO7221BDR
- Applications General-purpose
- Supply Voltage 3V~5.5V
- Forward Channel 1
- Reverse channel 1
- Number of Channels 2
- Isolation Technology 电容隔离
- Operating Temperature -40°C~+125°C
- Voltage Isolation or Not 带电压隔离
- Package SOP-8
- Manufacturer Texas Instruments
- Inputs - Side 1/Side 2 1/1
- Package / Case 8-SOIC (0.154", 3.90mm Width)
- Rise / Fall Time (Typ) 1ns, 1ns
- Type General Purpose
- Packaging Cut Tape (CT)
- Supplier Device Package 8-SOIC
- Part Status Active
- Common Mode Transient Immunity (Min) 25kV/µs
- Base Part Number ISO7221
- Pulse Width Distortion (Max) 3ns
- Isolated Power No
- Channel Type Unidirectional
- Voltage - Supply 3V ~ 5.5V
- Series -
- Propagation Delay tpLH / tpHL (Max) 70ns, 70ns
- Mounting Type Surface Mount
- Voltage - Isolation 2500Vrms
- Technology Capacitive Coupling
- detail General Purpose Digital Isolator 2500Vrms 2 Channel 5Mbps 25kV/µs CMTI 8-SOIC (0.154", 3.90mm Width)
