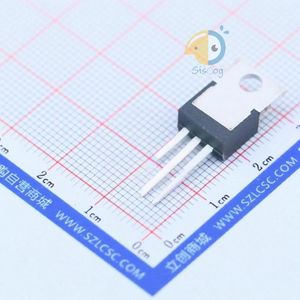

LM1085IT-ADJ/NOPB
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | Texas Instruments |
| Package | TO-220-3 |
| Datasheet | LM1085 |
| Description | Linear Voltage Regulator IC 1 Output 3A TO-220-3 |
فروشنده های LM1085IT-ADJ/NOPB
فروشگاهی یافت نشد
مشخصات LM1085IT-ADJ/NOPB
- RoHS true
- Category Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet Texas Instruments LM1085IT-ADJ/NOPB
- Output Type Adjustable
- Output Current 3A
- Output Voltage 1.25V~15V
- Dropout Voltage 1.5V@(3A)
- Output Polarity Positive
- Number of Outputs 1
- Maximum Input Voltage 29V
- Operating Temperature -40°C~+125°C@(Tj)
- Quiescent Current (Ground Current) 10mA
- Power Supply Rejection Ratio (PSRR) 75dB@(120Hz)
- Package TO-220
- Manufacturer Texas Instruments
- Base Part Number LM1085
- Supplier Device Package TO-220-3
- Voltage - Output (Max) 15V
- Output Configuration Positive
- Current - Quiescent (Iq) 10mA
- PSRR 75dB (120Hz)
- Voltage Dropout (Max) 1.5V @ 3A
- Number of Regulators 1
- Mounting Type Through Hole
- Packaging Tube
- Voltage - Output (Min/Fixed) 1.25V
- Protection Features Over Current, Over Temperature
- Series -
- Voltage - Input (Max) 29V
- Current - Output 3A
- Part Status Not For New Designs
- Package / Case TO-220-3
- Control Features -
- detail Linear Voltage Regulator IC 1 Output 3A TO-220-3
