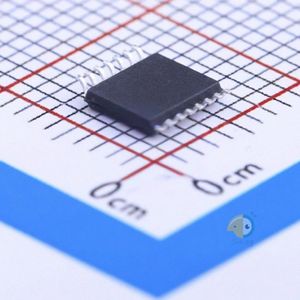

LM339PT
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | STMicroelectronics |
| Package | 14-TSSOP (0.173", 4.40mm Width) |
| Datasheet | LM139, 239, 339 |
| Description | Comparator General Purpose CMOS, DTL, ECL, MOS, Open-Collector, TTL 14-TSSOP |
فروشنده های LM339PT
فروشگاهی یافت نشد
مشخصات LM339PT
- RoHS true
- Category Operational Amplifier/Comparator/Comparators
- Datasheet STMicroelectronics LM339PT
- Output Type -
- Supply Current 1mA
- Supply Voltage 2V~32V;1V~16V
- Number of Elements 4
- Operating Temperature 0°C~+70°C
- Input Bias Current (Ib) 0.25uA
- Input Offset Voltage (Vos) 5mV
- Input Hysteresis Voltage (Vhys) -
- Common Mode Rejection Ratio (CMRR) 71dB
- Package TSSOP-14
- Manufacturer STMicroelectronics
- Series -
- Packaging Cut Tape (CT)
- Part Status Active
- Type General Purpose
- Voltage - Supply, Single/Dual (±) 2V ~ 32V, ±1V ~ 16V
- Voltage - Input Offset (Max) 5mV @ 30V
- Current - Input Bias (Max) 0.25µA @ 5V
- Current - Output (Typ) 16mA @ 5V
- Current - Quiescent (Max) 2.5mA
- CMRR, PSRR (Typ) -
- Propagation Delay (Max) -
- Hysteresis -
- Package / Case 14-TSSOP (0.173", 4.40mm Width)
- Mounting Type Surface Mount
- Supplier Device Package 14-TSSOP
- Base Part Number LM339
- detail Comparator General Purpose CMOS, DTL, ECL, MOS, Open-Collector, TTL 14-TSSOP
