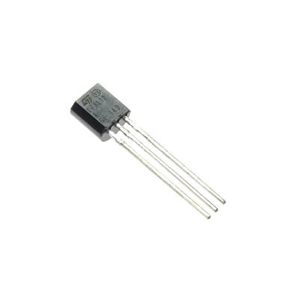

L78L12ACZ-TR
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | STMicroelectronics |
| Package | TO-226-3, TO-92-3 (TO-226AA) (Formed Leads) |
| Datasheet | L78L Datasheet |
| Description | Linear Voltage Regulator IC 1 Output 100mA TO-92-3 |
فروشنده های L78L12ACZ-TR
فروشگاهی یافت نشد
مشخصات L78L12ACZ-TR
- RoHS true
- Category Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet STMicroelectronics L78L12ACZ-TR
- Output Current 100mA
- Output Voltage 12V
- Output Polarity positive
- Number of Outputs 1
- Maximum Input Voltage 35V
- Operating Temperature 0°C~+125°C
- Quiescent Current (Ground Current) 6mA
- Power Supply Rejection Ratio (PSRR) 42dB@(120Hz)
- Package TO-92
- Manufacturer STMicroelectronics
- Series -
- Packaging Cut Tape (CT)
- Part Status Active
- Output Configuration Positive
- Output Type Fixed
- Number of Regulators 1
- Voltage - Input (Max) 35V
- Voltage - Output (Min/Fixed) 12V
- Voltage - Output (Max) -
- Voltage Dropout (Max) -
- Current - Output 100mA
- Current - Quiescent (Iq) 6mA
- Current - Supply (Max) 6.5mA
- PSRR 42dB (120Hz)
- Control Features -
- Protection Features Over Current, Over Temperature, Short Circuit
- Mounting Type Through Hole
- Package / Case TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
- Supplier Device Package TO-92-3
- Base Part Number L78L12
- detail Linear Voltage Regulator IC 1 Output 100mA TO-92-3
