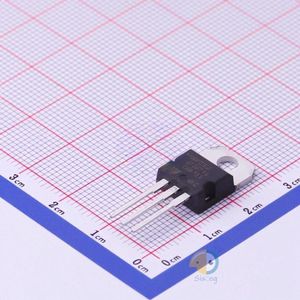

STP40NF03L
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | STMicroelectronics |
| Package | TO-220-3 |
| Datasheet | ST(F,P)40NF03L |
| Description | N-Channel 30V 40A (Tc) 70W (Tc) Through Hole TO-220AB |
فروشنده های STP40NF03L
فروشگاهی یافت نشد
تغییرات قیمت
مشخصات STP40NF03L
- RoHS true
- Type N Channel
- Category Triode/MOS Tube/Transistor/MOSFETs
- Datasheet STMicroelectronics STP40NF03L
- Operating Temperature -55°C~+175°C@(Tj)
- Power Dissipation (Pd) 70W
- Total Gate Charge (Qg@Vgs) 10.5nC@4.5V
- Drain Source Voltage (Vdss) 30V
- Input Capacitance (Ciss@Vds) 770pF@25V
- Continuous Drain Current (Id) 40A
- Gate Threshold Voltage (Vgs(th)@Id) 1.7V@250uA
- Reverse Transfer Capacitance (Crss@Vds) 60pF@25V
- Drain Source On Resistance (RDS(on)@Vgs,Id) 18mΩ@10V,20A
- Package TO-220
- Manufacturer STMicroelectronics
- Series STripFET™
- Packaging Tube
- Part Status Not For New Designs
- FET Type N-Channel
- Technology MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss) 30V
- Current - Continuous Drain (Id) @ 25°C 40A (Tc)
- Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
- Rds On (Max) @ Id, Vgs 22mOhm @ 20A, 10V
- Vgs(th) (Max) @ Id 2.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs 15nC @ 4.5V
- Vgs (Max) ±16V
- Input Capacitance (Ciss) (Max) @ Vds 770pF @ 25V
- FET Feature -
- Power Dissipation (Max) 70W (Tc)
- Mounting Type Through Hole
- Supplier Device Package TO-220AB
- Package / Case TO-220-3
- Base Part Number STP40N
- detail N-Channel 30V 40A (Tc) 70W (Tc) Through Hole TO-220AB
