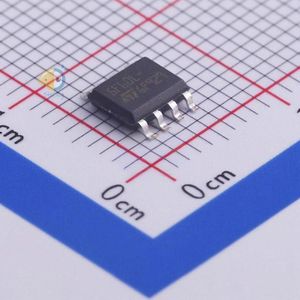

STS5NF60L
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | STMicroelectronics |
| Package | 8-SOIC (0.154", 3.90mm Width) |
| Datasheet | STS5NF60L |
| Description | N-Channel 60V 5A (Tc) 2.5W (Tc) Surface Mount 8-SO |
فروشنده های STS5NF60L
فروشگاهی یافت نشد
تغییرات قیمت
مشخصات STS5NF60L
- RoHS true
- Type N Channel
- Category Triode/MOS Tube/Transistor/MOSFETs
- Datasheet STMicroelectronics STS5NF60L
- Power Dissipation (Pd) 2.5W
- Total Gate Charge (Qg@Vgs) 17nC@5V
- Drain Source Voltage (Vdss) 60V
- Input Capacitance (Ciss@Vds) 1250pF@25V
- Continuous Drain Current (Id) 5A
- Gate Threshold Voltage (Vgs(th)@Id) 2.5V@250uA
- Drain Source On Resistance (RDS(on)@Vgs,Id) 55mΩ@10V,2.5A
- Package SOP-8
- Manufacturer STMicroelectronics
- Series STripFET™
- Packaging Cut Tape (CT)
- Part Status Active
- FET Type N-Channel
- Technology MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss) 60V
- Current - Continuous Drain (Id) @ 25°C 5A (Tc)
- Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
- Rds On (Max) @ Id, Vgs 55mOhm @ 2.5A, 10V
- Vgs(th) (Max) @ Id 2.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs 17nC @ 5V
- Vgs (Max) ±20V
- Input Capacitance (Ciss) (Max) @ Vds 1250pF @ 25V
- FET Feature -
- Power Dissipation (Max) 2.5W (Tc)
- Operating Temperature 150°C (TJ)
- Mounting Type Surface Mount
- Supplier Device Package 8-SO
- Package / Case 8-SOIC (0.154", 3.90mm Width)
- Base Part Number STS5N
- detail N-Channel 60V 5A (Tc) 2.5W (Tc) Surface Mount 8-SO
