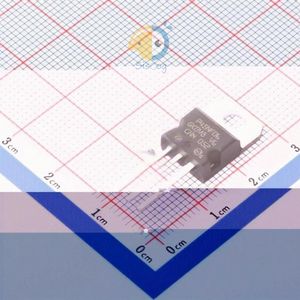

STP45NF06
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | STMicroelectronics |
| Package | TO-220-3 |
| Datasheet | STP45NF06 |
| Description | N-Channel 60V 38A (Tc) 80W (Tc) Through Hole TO-220AB |
فروشنده های STP45NF06
فروشگاهی یافت نشد
تغییرات قیمت
مشخصات STP45NF06
- RoHS true
- Category Triode/MOS Tube/Transistor/MOSFETs
- Datasheet STMicroelectronics STP45NF06
- Power Dissipation (Pd) 80W
- Total Gate Charge (Qg@Vgs) 58nC@10V
- Input Capacitance (Ciss@Vds) 980pF@25V
- Continuous Drain Current (Id) 38A
- Gate Threshold Voltage (Vgs(th)@Id) 4V@250uA
- Reverse Transfer Capacitance (Crss@Vds) -
- Drain Source On Resistance (RDS(on)@Vgs,Id) 28mΩ@19A,10V
- Package TO-220
- Manufacturer STMicroelectronics
- Series STripFET™ II
- Packaging Tube
- Part Status Active
- FET Type N-Channel
- Technology MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss) 60V
- Current - Continuous Drain (Id) @ 25°C 38A (Tc)
- Drive Voltage (Max Rds On, Min Rds On) 10V
- Rds On (Max) @ Id, Vgs 28mOhm @ 19A, 10V
- Vgs(th) (Max) @ Id 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs 58nC @ 10V
- Vgs (Max) ±20V
- Input Capacitance (Ciss) (Max) @ Vds 980pF @ 25V
- FET Feature -
- Power Dissipation (Max) 80W (Tc)
- Operating Temperature 175°C (TJ)
- Mounting Type Through Hole
- Supplier Device Package TO-220AB
- Package / Case TO-220-3
- Base Part Number STP45N
- detail N-Channel 60V 38A (Tc) 80W (Tc) Through Hole TO-220AB
