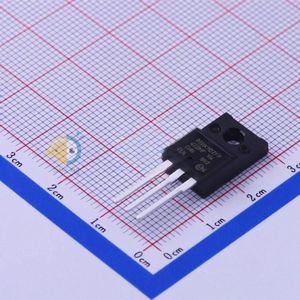

STP3NK90ZFP
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | STMicroelectronics |
| Package | TO-220-3 |
| Datasheet | ST(D,P)3NK90Z(FP,-1) |
| Description | N-Channel 900V 3A (Tc) 90W (Tc) Through Hole TO-220AB |
فروشنده های STP3NK90ZFP
فروشگاهی یافت نشد
تغییرات قیمت
مشخصات STP3NK90ZFP
- RoHS true
- Type N Channel
- Category Triode/MOS Tube/Transistor/MOSFETs
- Datasheet STMicroelectronics STP3NK90ZFP
- Operating Temperature -55°C~+150°C@(Tj)
- Power Dissipation (Pd) 25W
- Total Gate Charge (Qg@Vgs) 22.7nC@10V
- Drain Source Voltage (Vdss) 900V
- Input Capacitance (Ciss@Vds) 590pF@25V
- Continuous Drain Current (Id) 3A
- Gate Threshold Voltage (Vgs(th)@Id) 4.5V@50uA
- Drain Source On Resistance (RDS(on)@Vgs,Id) 4.8Ω@10V,1.5A
- Package TO-220
- Manufacturer STMicroelectronics
- Series SuperMESH™
- Packaging Tube
- Part Status Active
- FET Type N-Channel
- Technology MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss) 900V
- Current - Continuous Drain (Id) @ 25°C 3A (Tc)
- Drive Voltage (Max Rds On, Min Rds On) 10V
- Rds On (Max) @ Id, Vgs 4.8Ohm @ 1.5A, 10V
- Vgs(th) (Max) @ Id 4.5V @ 50µA
- Gate Charge (Qg) (Max) @ Vgs 22.7nC @ 10V
- Vgs (Max) ±30V
- Input Capacitance (Ciss) (Max) @ Vds 590pF @ 25V
- FET Feature -
- Power Dissipation (Max) 90W (Tc)
- Mounting Type Through Hole
- Supplier Device Package TO-220AB
- Package / Case TO-220-3
- Base Part Number STP3N
- detail N-Channel 900V 3A (Tc) 90W (Tc) Through Hole TO-220AB
