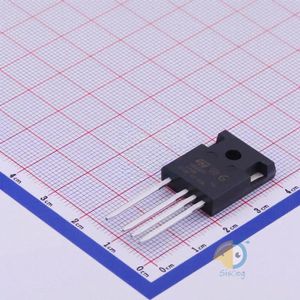

STW48N60M2-4
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | STMicroelectronics |
| Package | TO-247-4 |
| Datasheet | STW48N60M2-4 |
| Description | N-Channel 600V 42A (Tc) 300W (Tc) Through Hole TO-247-4L |
فروشنده های STW48N60M2-4
فروشگاهی یافت نشد
مشخصات STW48N60M2-4
- RoHS true
- Category Triode/MOS Tube/Transistor/MOSFETs
- Datasheet STMicroelectronics STW48N60M2-4
- Power Dissipation (Pd) 300W
- Total Gate Charge (Qg@Vgs) 70nC@10V
- Input Capacitance (Ciss@Vds) 3060pF@100V
- Continuous Drain Current (Id) 42A
- Gate Threshold Voltage (Vgs(th)@Id) 4V@250uA
- Reverse Transfer Capacitance (Crss@Vds) -
- Drain Source On Resistance (RDS(on)@Vgs,Id) 70mΩ@21A,10V
- Package TO-247-4
- Manufacturer STMicroelectronics
- Series MDmesh™ M2
- Packaging Tube
- Part Status Active
- FET Type N-Channel
- Technology MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss) 600V
- Current - Continuous Drain (Id) @ 25°C 42A (Tc)
- Drive Voltage (Max Rds On, Min Rds On) 10V
- Rds On (Max) @ Id, Vgs 70mOhm @ 21A, 10V
- Vgs(th) (Max) @ Id 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs 70nC @ 10V
- Vgs (Max) ±25V
- Input Capacitance (Ciss) (Max) @ Vds 3060pF @ 100V
- FET Feature -
- Power Dissipation (Max) 300W (Tc)
- Operating Temperature 150°C (TJ)
- Mounting Type Through Hole
- Supplier Device Package TO-247-4L
- Package / Case TO-247-4
- Base Part Number STW48N
- detail N-Channel 600V 42A (Tc) 300W (Tc) Through Hole TO-247-4L
