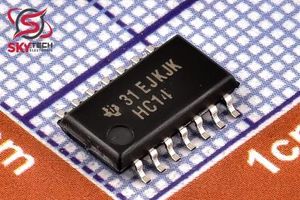

SN74HC14NSR
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | Texas Instruments |
| Package | 14-SOIC (0.209", 5.30mm Width) |
| Datasheet | SN54,74HC14 |
| Description | Inverter IC 6 Channel Schmitt Trigger 14-SOP |
فروشنده های SN74HC14NSR
فروشگاهی یافت نشد
تغییرات قیمت
مشخصات SN74HC14NSR
- RoHS true
- Series 74HC
- Category Logic ICs/Inverters
- Datasheet Texas Instruments SN74HC14NSR
- Input Type Schmitt Trigger
- Sink Current 5.2mA
- Source Current 5.2mA
- Number of Circuits 6
- Supply Current (Max) 2uA
- Low level range (VIL) 0.3V~1.2V
- Max Propagation Delay 21ns@6V,50pF
- High level range (VIH) 1.5V~4.2V
- Supply Voltage(Single) 2V~6V
- Package SOP-14-208mil
- Manufacturer Texas Instruments
- Mounting Type Surface Mount
- Logic Level - Low 0.3V ~ 1.2V
- Current - Quiescent (Max) 2µA
- Voltage - Supply 2V ~ 6V
- Operating Temperature -40°C ~ 85°C
- Packaging Cut Tape (CT)
- Package / Case 14-SOIC (0.209", 5.30mm Width)
- Logic Level - High 1.5V ~ 4.2V
- Part Status Active
- Current - Output High, Low 5.2mA, 5.2mA
- Features Schmitt Trigger
- Base Part Number SN74HC1
- Supplier Device Package 14-SOP
- Number of Inputs 6
- Logic Type Inverter
- Max Propagation Delay @ V, Max CL 21ns @ 6V, 50pF
- detail Inverter IC 6 Channel Schmitt Trigger 14-SOP
