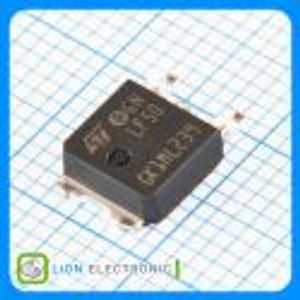

LF50CDT-TRY
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | STMicroelectronics |

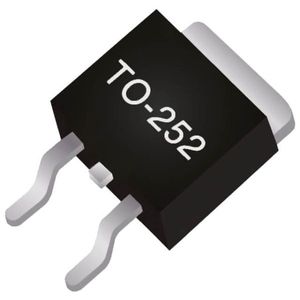

| Package | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Datasheet | LFxx |
| Description | Linear Voltage Regulator IC 1 Output 500mA DPAK |
فروشنده های LF50CDT-TRY
فروشگاهی یافت نشد
مشخصات LF50CDT-TRY
- Manufacturer STMicroelectronics
- Series Automotive, AEC-Q100
- Packaging Cut Tape (CT)
- Part Status Active
- Output Configuration Positive
- Output Type Fixed
- Number of Regulators 1
- Voltage - Input (Max) 16V
- Voltage - Output (Min/Fixed) 5V
- Voltage - Output (Max) -
- Voltage Dropout (Max) 1.3V @ 500mA
- Current - Output 500mA
- Current - Quiescent (Iq) 2mA
- Current - Supply (Max) 12mA
- PSRR 76dB ~ 60dB (120Hz ~ 10kHz)
- Control Features -
- Protection Features Over Current, Over Temperature
- Operating Temperature -40°C ~ 125°C
- Mounting Type Surface Mount
- Package / Case TO-252-3, DPak (2 Leads + Tab), SC-63
- Supplier Device Package DPAK
- Base Part Number LF50
- detail Linear Voltage Regulator IC 1 Output 500mA DPAK
