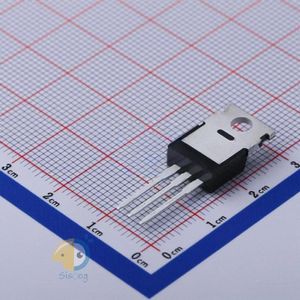

CSD19505KCS
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | Texas Instruments |
| Package | TO-220-3 |
| Datasheet | CSD19505KCS |
| Description | N-Channel 80V 150A (Ta) 300W (Tc) Through Hole TO-220-3 |
فروشنده های CSD19505KCS
فروشگاهی یافت نشد
تغییرات قیمت
مشخصات CSD19505KCS
- RoHS true
- Type N Channel
- Category Triode/MOS Tube/Transistor/MOSFETs
- Datasheet Texas Instruments CSD19505KCS
- Operating Temperature -55°C~+175°C@(Tj)
- Power Dissipation (Pd) 300W
- Total Gate Charge (Qg@Vgs) 76nC@10V
- Drain Source Voltage (Vdss) 80V
- Input Capacitance (Ciss@Vds) 7820pF@40V
- Continuous Drain Current (Id) 208A
- Gate Threshold Voltage (Vgs(th)@Id) 3.2V@250uA
- Reverse Transfer Capacitance (Crss@Vds) 26pF@40V
- Drain Source On Resistance (RDS(on)@Vgs,Id) 2.6mΩ@10V,100A
- Package TO-220
- Manufacturer Texas Instruments
- Power Dissipation (Max) 300W (Tc)
- Drain to Source Voltage (Vdss) 80V
- Rds On (Max) @ Id, Vgs 3.8mOhm @ 100A, 6V
- Vgs (Max) ±20V
- FET Type N-Channel
- Drive Voltage (Max Rds On, Min Rds On) 6V, 10V
- Technology MOSFET (Metal Oxide)
- Current - Continuous Drain (Id) @ 25°C 150A (Ta)
- FET Feature -
- Input Capacitance (Ciss) (Max) @ Vds 7820pF @ 40V
- Packaging Tube
- Package / Case TO-220-3
- Part Status Active
- Series NexFET™
- Vgs(th) (Max) @ Id 3.2V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs 76nC @ 10V
- Supplier Device Package TO-220-3
- Mounting Type Through Hole
- Base Part Number CSD1950
- detail N-Channel 80V 150A (Ta) 300W (Tc) Through Hole TO-220-3
