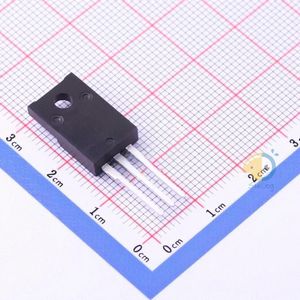

STP5NK80ZFP
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | STMicroelectronics |
| Package | TO-220-3 Full Pack |
| Datasheet | STP5NK80Z(FP) |
| Description | N-Channel 800V 4.3A (Tc) 30W (Tc) Through Hole TO-220FP |
فروشنده های STP5NK80ZFP
فروشگاهی یافت نشد
تغییرات قیمت
مشخصات STP5NK80ZFP
- RoHS true
- Category Triode/MOS Tube/Transistor/MOSFETs
- Datasheet STMicroelectronics STP5NK80ZFP
- Operating Temperature -55°C~+150°C@(Tj)
- Power Dissipation (Pd) 30W
- Total Gate Charge (Qg@Vgs) 45.5nC@10V
- Drain Source Voltage (Vdss) 800V
- Input Capacitance (Ciss@Vds) 910pF@25V
- Continuous Drain Current (Id) 4.3A
- Gate Threshold Voltage (Vgs(th)@Id) 4.5V@100uA
- Drain Source On Resistance (RDS(on)@Vgs,Id) 2.4Ω@2.15A,10V
- Package TO-220
- Manufacturer STMicroelectronics
- Series PowerMESH™
- Packaging Tube
- Part Status Active
- FET Type N-Channel
- Technology MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss) 800V
- Current - Continuous Drain (Id) @ 25°C 4.3A (Tc)
- Drive Voltage (Max Rds On, Min Rds On) 10V
- Rds On (Max) @ Id, Vgs 2.4Ohm @ 2.15A, 10V
- Vgs(th) (Max) @ Id 4.5V @ 100µA
- Gate Charge (Qg) (Max) @ Vgs 45.5nC @ 10V
- Vgs (Max) ±30V
- Input Capacitance (Ciss) (Max) @ Vds 910pF @ 25V
- FET Feature -
- Power Dissipation (Max) 30W (Tc)
- Mounting Type Through Hole
- Supplier Device Package TO-220FP
- Package / Case TO-220-3 Full Pack
- Base Part Number STP5N
- detail N-Channel 800V 4.3A (Tc) 30W (Tc) Through Hole TO-220FP
