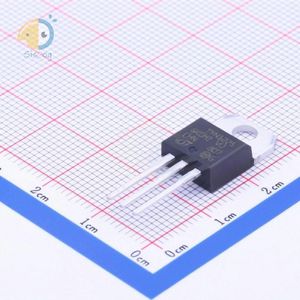

TYN1225RG
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | STMicroelectronics |
| Package | TO-220-3 |
| Datasheet | TN2540,TXN625,TYN625,825,1225 |
| Description | SCR 1.2kV 25A Standard Recovery Through Hole TO-220AB |
فروشنده های TYN1225RG
فروشگاهی یافت نشد
تغییرات قیمت
مشخصات TYN1225RG
- RoHS true
- Category Triode/MOS Tube/Transistor/TRIACs
- SCR Type One-way thyristor
- Datasheet STMicroelectronics TYN1225RG
- Holding Current (Ih) 50mA
- Operating Temperature -40°C~+125°C
- Gate Trigger Current(Igt) 40mA
- Gate Trigger Voltage (Vgt) 1.5V
- RMS On-State Current(It (rms)) 25A
- Peak Forward On?State Voltage (Vtm) 1.6V
- Peak Repetitive Off?State Voltage (Vdrm) 1.2kV
- Package TO-220AB-3
- Manufacturer STMicroelectronics
- Series -
- Packaging Tube
- Part Status Active
- Voltage - Off State 1.2kV
- Voltage - Gate Trigger (Vgt) (Max) 1.5V
- Current - Gate Trigger (Igt) (Max) 40mA
- Voltage - On State (Vtm) (Max) 1.6V
- Current - On State (It (AV)) (Max) 16A
- Current - On State (It (RMS)) (Max) 25A
- Current - Hold (Ih) (Max) 50mA
- Current - Off State (Max) 5µA
- Current - Non Rep. Surge 50, 60Hz (Itsm) 250A, 260A
- Mounting Type Through Hole
- Package / Case TO-220-3
- Supplier Device Package TO-220AB
- Base Part Number TYN1225
- detail SCR 1.2kV 25A Standard Recovery Through Hole TO-220AB
