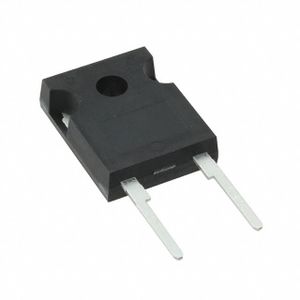

STTH6012W
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | STMicroelectronics |
| Package | DO-247-2 (Straight Leads) |
| Datasheet | STTH6012 |
| Description | Diode Standard 1200V 60A Through Hole DO-247 |
فروشنده های STTH6012W
فروشگاهی یافت نشد
تغییرات قیمت
مشخصات STTH6012W
- RoHS true
- Category Diodes/Diodes - Fast Recovery Rectifiers
- Datasheet STMicroelectronics STTH6012W
- Diode Configuration Single
- Reverse Voltage (Vr) 1.2kV
- Operating Temperature +175°C@(Tj)
- Forward Voltage (Vf@If) 2.25V@60A
- Reverse Leakage Current 30uA@1.2kV
- Reverse Recovery Time (trr) 63ns
- Average Rectified Current (Io) 60A
- Package DO-247
- Manufacturer STMicroelectronics
- Series -
- Packaging Tube
- Part Status Active
- Diode Type Standard
- Voltage - DC Reverse (Vr) (Max) 1200V
- Current - Average Rectified (Io) 60A
- Voltage - Forward (Vf) (Max) @ If 2.25V @ 60A
- Speed Fast Recovery =< 500ns, > 200mA (Io)
- Current - Reverse Leakage @ Vr 30µA @ 1200V
- Capacitance @ Vr, F -
- Mounting Type Through Hole
- Package / Case DO-247-2 (Straight Leads)
- Supplier Device Package DO-247
- Operating Temperature - Junction 175°C (Max)
- Base Part Number STTH6012
- detail Diode Standard 1200V 60A Through Hole DO-247
