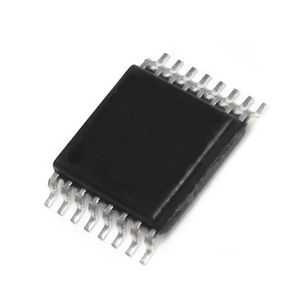

ADG633YRUZ-REEL7
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | Analog Devices |
| Package | 16-TSSOP (0.173", 4.40mm Width) |
| Datasheet | ADG633 |
| Description | 3 Circuit IC Switch 2:1 75Ohm 16-TSSOP |
فروشنده های ADG633YRUZ-REEL7
فروشگاهی یافت نشد
مشخصات ADG633YRUZ-REEL7
- RoHS true
- Category Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
- Datasheet Analog Devices ADG633YRUZ-REEL7
- Turn-on time 95ns
- Turn-off time 40ns
- Supply Voltage 2V~12V
- Switch Circuit SPDT(SPDT)
- Number of Channels 3
- On-State Resistance (Max) 75Ω
- Package TSSOP-16
- Manufacturer Analog Devices
- Series -
- Packaging Tube
- Part Status Obsolete
- Multiplexer/Demultiplexer Circuit 2:1
- Number of Circuits 3
- Channel-to-Channel Matching (ΔRon) 800mOhm
- Voltage - Supply, Single (V+) 2V ~ 12V
- Voltage - Supply, Dual (V±) ±2V ~ 6V
- Switch Time (Ton, Toff) (Max) 95ns, 40ns
- -3db Bandwidth 580MHz
- Charge Injection 2pC
- Channel Capacitance (CS(off), CD(off)) 4pF, 7pF
- Current - Leakage (IS(off)) (Max) 200pA
- Crosstalk -90dB @ 1MHz
- Operating Temperature -40°C ~ 125°C (TA)
- Mounting Type Surface Mount
- Package / Case 16-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package 16-TSSOP
- Base Part Number ADG633
- detail 3 Circuit IC Switch 2:1 75Ohm 16-TSSOP
