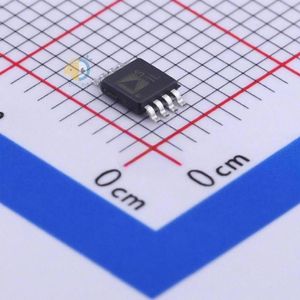

ADG1419BRMZ-REEL7
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | Analog Devices |
| Package | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Datasheet | ADG1419 |
| Description | 1 Circuit IC Switch 2:1 2.4Ohm 8-MSOP |
فروشنده های ADG1419BRMZ-REEL7
فروشگاهی یافت نشد
مشخصات ADG1419BRMZ-REEL7
- RoHS true
- Category Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
- Datasheet Analog Devices ADG1419BRMZ-REEL7
- Switch Circuit -
- Package MSOP-8
- Manufacturer Analog Devices
- Series -
- Packaging Cut Tape (CT)
- Part Status Active
- Multiplexer/Demultiplexer Circuit 2:1
- Number of Circuits 1
- On-State Resistance (Max) 2.4Ohm
- Channel-to-Channel Matching (ΔRon) 50mOhm
- Voltage - Supply, Single (V+) 5V ~ 16.5V
- Voltage - Supply, Dual (V±) ±4.5V ~ 16.5V
- Switch Time (Ton, Toff) (Max) 110ns, 140ns
- -3db Bandwidth 135MHz
- Charge Injection -16pC
- Channel Capacitance (CS(off), CD(off)) 19pF, 44pF
- Current - Leakage (IS(off)) (Max) 500pA
- Crosstalk -64dB @ 1MHz
- Operating Temperature -40°C ~ 125°C (TA)
- Mounting Type Surface Mount
- Package / Case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
- Supplier Device Package 8-MSOP
- Base Part Number ADG1419
- detail 1 Circuit IC Switch 2:1 2.4Ohm 8-MSOP
