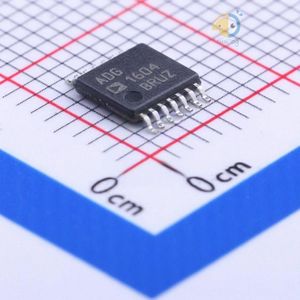

ADG1604BRUZ-REEL7
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | Analog Devices |
| Package | 14-TSSOP (0.173", 4.40mm Width) |
| Datasheet | ADG1604 |
| Description | 1 Circuit IC Switch 4:1 1.1Ohm 14-TSSOP |
فروشنده های ADG1604BRUZ-REEL7
فروشگاهی یافت نشد
مشخصات ADG1604BRUZ-REEL7
- RoHS true
- Category Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
- Datasheet Analog Devices ADG1604BRUZ-REEL7
- Turn-on time 95ns
- Turn-off time 173ns
- Supply Voltage 3.3V~16V
- Switch Circuit 单刀四掷(SP4T)
- Number of Channels 1
- On-State Resistance (Max) 1.1Ω
- Package TSSOP-14
- Manufacturer Analog Devices
- Series -
- Packaging Cut Tape (CT)
- Part Status Active
- Multiplexer/Demultiplexer Circuit 4:1
- Number of Circuits 1
- Channel-to-Channel Matching (ΔRon) 30mOhm
- Voltage - Supply, Single (V+) 3.3V ~ 16V
- Voltage - Supply, Dual (V±) ±3.3V ~ 8V
- Switch Time (Ton, Toff) (Max) 95ns, 173ns
- -3db Bandwidth 19MHz
- Charge Injection 125pC
- Channel Capacitance (CS(off), CD(off)) 60pF, 270pF
- Current - Leakage (IS(off)) (Max) 200pA
- Crosstalk -70dB @ 1MHz
- Operating Temperature -40°C ~ 125°C (TA)
- Mounting Type Surface Mount
- Package / Case 14-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package 14-TSSOP
- Base Part Number ADG1604
- detail 1 Circuit IC Switch 4:1 1.1Ohm 14-TSSOP
