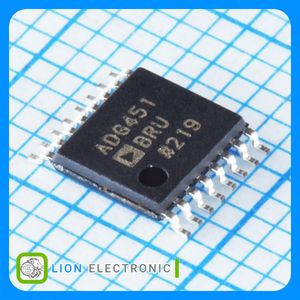

ADG451BRUZ-REEL7
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | Analog Devices Inc. |
| Package | 16-TSSOP (0.173", 4.40mm Width) |
| Datasheet | ADG451-453 |
| Description | 4 Circuit IC Switch 1:1 5Ohm 16-TSSOP |
فروشنده های ADG451BRUZ-REEL7
فروشگاهی یافت نشد
مشخصات ADG451BRUZ-REEL7
- Manufacturer Analog Devices Inc.
- Series -
- Packaging Cut Tape (CT)
- Part Status Active
- Switch Circuit SPST - NC
- Multiplexer/Demultiplexer Circuit 1:1
- Number of Circuits 4
- On-State Resistance (Max) 5Ohm
- Channel-to-Channel Matching (ΔRon) 100mOhm
- Voltage - Supply, Single (V+) 12V
- Voltage - Supply, Dual (V±) ±4.5V ~ 20V
- Switch Time (Ton, Toff) (Max) 180ns, 140ns
- -3db Bandwidth -
- Charge Injection 20pC
- Channel Capacitance (CS(off), CD(off)) 37pF, 37pF
- Current - Leakage (IS(off)) (Max) 500pA
- Crosstalk -90dB @ 1MHz
- Operating Temperature -40°C ~ 85°C (TA)
- Mounting Type Surface Mount
- Package / Case 16-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package 16-TSSOP
- Base Part Number ADG451
- detail 4 Circuit IC Switch 1:1 5Ohm 16-TSSOP
