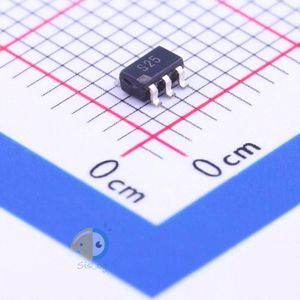

ADG1201BRJZ-R2
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | Analog Devices |
| Package | SOT-23-6 |
| Datasheet | ADG1201,02 |
| Description | 1 Circuit IC Switch 1:1 200Ohm SOT-23-6 |
فروشنده های ADG1201BRJZ-R2
فروشگاهی یافت نشد
مشخصات ADG1201BRJZ-R2
- RoHS true
- Category Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
- Datasheet Analog Devices ADG1201BRJZ-R2
- Turn-on time 170ns
- Turn-off time 105ns
- Supply Voltage 5V~16.5V
- Switch Circuit SPST(SPST)-Normal Open
- Number of Channels 1
- On-State Resistance (Max) 200Ω
- Package SOT-23-6
- Manufacturer Analog Devices
- Series -
- Packaging Cut Tape (CT)
- Part Status Active
- Multiplexer/Demultiplexer Circuit 1:1
- Number of Circuits 1
- Channel-to-Channel Matching (ΔRon) -
- Voltage - Supply, Single (V+) 5V ~ 16.5V
- Voltage - Supply, Dual (V±) ±5V ~ 16.5V
- Switch Time (Ton, Toff) (Max) 170ns, 105ns
- -3db Bandwidth 660MHz
- Charge Injection -0.8pC
- Channel Capacitance (CS(off), CD(off)) 3pF, 3.3pF
- Current - Leakage (IS(off)) (Max) 100pA
- Crosstalk -
- Operating Temperature -40°C ~ 125°C (TA)
- Mounting Type Surface Mount
- Package / Case SOT-23-6
- Supplier Device Package SOT-23-6
- Base Part Number ADG1201
- detail 1 Circuit IC Switch 1:1 200Ohm SOT-23-6
