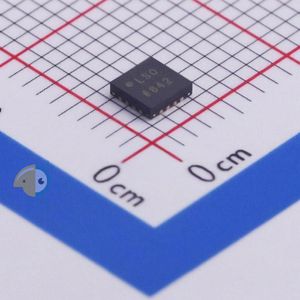

ADP1763ACPZ-R7
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | Analog Devices |
| Package | 16-WFQFN Exposed Pad |
| Datasheet | ADP1763 Datasheet |
| Description | Linear Voltage Regulator IC 1 Output 3A 16-LFCSP-WQ (3x3) |
فروشنده های ADP1763ACPZ-R7
فروشگاهی یافت نشد
مشخصات ADP1763ACPZ-R7
- RoHS true
- Category Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet Analog Devices ADP1763ACPZ-R7
- Output Type Adjustable
- Output Current 3A
- Output Voltage 0.5V~1.5V
- Dropout Voltage 145mV@(3A)
- Output Polarity Positive
- Number of Outputs 1
- Maximum Input Voltage 1.98V
- Operating Temperature -40°C~+125°C@(Tj)
- Quiescent Current (Ground Current) 8mA
- Power Supply Rejection Ratio (PSRR) 62dB@(10kHz),33dB@(1MHz)
- Package LFCSP-16
- Manufacturer Analog Devices
- Series -
- Packaging Cut Tape (CT)
- Part Status Active
- Output Configuration Positive
- Number of Regulators 1
- Voltage - Input (Max) 1.98V
- Voltage - Output (Min/Fixed) 0.5V
- Voltage - Output (Max) 1.5V
- Voltage Dropout (Max) 0.145V @ 3A
- Current - Output 3A
- Current - Quiescent (Iq) 8mA
- Current - Supply (Max) 16mA
- PSRR 62dB ~ 33dB (10kHz ~ 1MHz)
- Control Features Enable, Power Good, Soft Start
- Protection Features Current Limit, Thermal Overload
- Mounting Type Surface Mount
- Package / Case 16-WFQFN Exposed Pad
- Supplier Device Package 16-LFCSP-WQ (3x3)
- Base Part Number ADP1763
- detail Linear Voltage Regulator IC 1 Output 3A 16-LFCSP-WQ (3x3)
