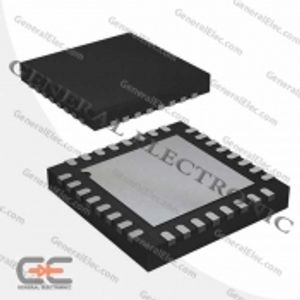

ADG1206YCPZ-REEL7
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | Analog Devices |
| Package | 32-WFQFN Exposed Pad, CSP |
| Datasheet | ADG1206,07 |
| Description | 1 Circuit IC Switch 16:1 200Ohm 32-LFCSP-WQ (5x5) |
فروشنده های ADG1206YCPZ-REEL7
فروشگاهی یافت نشد
مشخصات ADG1206YCPZ-REEL7
- RoHS true
- Category Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
- Datasheet Analog Devices ADG1206YCPZ-REEL7
- Turn-on time 95ns
- Turn-off time 100ns
- Supply Voltage 5V~16.5V
- Number of Channels 1
- On-State Resistance (Max) 200Ω
- Package LFCSP-32
- Manufacturer Analog Devices
- Series -
- Packaging Cut Tape (CT)
- Part Status Active
- Switch Circuit -
- Multiplexer/Demultiplexer Circuit 16:1
- Number of Circuits 1
- Channel-to-Channel Matching (ΔRon) 3.5Ohm
- Voltage - Supply, Single (V+) 5V ~ 16.5V
- Voltage - Supply, Dual (V±) ±5V ~ 16.5V
- Switch Time (Ton, Toff) (Max) 95ns, 100ns
- -3db Bandwidth 280MHz
- Charge Injection 0.5pC
- Channel Capacitance (CS(off), CD(off)) 2pF, 12pF
- Current - Leakage (IS(off)) (Max) 200pA
- Crosstalk -85dB @ 1MHz
- Operating Temperature -40°C ~ 125°C (TA)
- Mounting Type Surface Mount
- Package / Case 32-WFQFN Exposed Pad, CSP
- Supplier Device Package 32-LFCSP-WQ (5x5)
- Base Part Number ADG1206
- detail 1 Circuit IC Switch 16:1 200Ohm 32-LFCSP-WQ (5x5)
