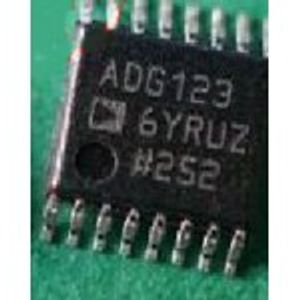

ADG1236YRUZ-REEL7
در 0 فروشگاه
قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | Analog Devices |
| Package | 16-TSSOP (0.173", 4.40mm Width) |
| Datasheet | ADG1236 |
| Description | 2 Circuit IC Switch 2:1 190Ohm 16-TSSOP |
sellers ADG1236YRUZ-REEL7
فروشگاهی یافت نشد
مشخصات
- RoHS true
- Category Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
- Datasheet Analog Devices ADG1236YRUZ-REEL7
- Turn-on time 150ns
- Turn-off time 90ns
- Supply Voltage 12V
- Switch Circuit SPDT(SPDT)
- Number of Channels 2
- On-State Resistance (Max) 190Ω
- Package TSSOP-16
- Manufacturer Analog Devices
- Series -
- Packaging Cut Tape (CT)
- Part Status Active
- Multiplexer/Demultiplexer Circuit 2:1
- Number of Circuits 2
- Channel-to-Channel Matching (ΔRon) 3.5Ohm
- Voltage - Supply, Single (V+) 12V
- Voltage - Supply, Dual (V±) ±15V
- Switch Time (Ton, Toff) (Max) 150ns, 90ns
- -3db Bandwidth 1GHz
- Charge Injection -1pC
- Channel Capacitance (CS(off), CD(off)) 1.6pF
- Current - Leakage (IS(off)) (Max) 100pA
- Crosstalk -85dB @ 1MHz
- Operating Temperature -40°C ~ 125°C (TA)
- Mounting Type Surface Mount
- Package / Case 16-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package 16-TSSOP
- Base Part Number ADG1236
- detail 2 Circuit IC Switch 2:1 190Ohm 16-TSSOP
