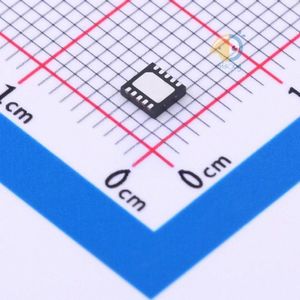

ADG884BCPZ-REEL7
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | Analog Devices |
| Package | 10-VFDFN Exposed Pad, CSP |
| Datasheet | ADG884 |
| Description | 2 Circuit IC Switch 2:1 370mOhm 10-LFCSP-WD (3x3) |
فروشنده های ADG884BCPZ-REEL7
فروشگاهی یافت نشد
مشخصات ADG884BCPZ-REEL7
- RoHS true
- Category Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
- Datasheet Analog Devices ADG884BCPZ-REEL7
- Turn-on time 50ns
- Turn-off time 20ns
- Supply Voltage 1.8V~5.5V
- Switch Circuit SPDT(SPDT)
- Number of Channels 2
- On-State Resistance (Max) 370mΩ
- Package LFCSP-10
- Manufacturer Analog Devices
- Series -
- Packaging Cut Tape (CT)
- Part Status Active
- Multiplexer/Demultiplexer Circuit 2:1
- Number of Circuits 2
- Channel-to-Channel Matching (ΔRon) 10mOhm
- Voltage - Supply, Single (V+) 1.8V ~ 5.5V
- Voltage - Supply, Dual (V±) -
- Switch Time (Ton, Toff) (Max) 50ns, 20ns
- -3db Bandwidth 18MHz
- Charge Injection 125pC
- Channel Capacitance (CS(off), CD(off)) 103pF
- Current - Leakage (IS(off)) (Max) 200pA (Typ)
- Crosstalk -120dB @ 100kHz
- Operating Temperature -40°C ~ 85°C (TA)
- Mounting Type Surface Mount
- Package / Case 10-VFDFN Exposed Pad, CSP
- Supplier Device Package 10-LFCSP-WD (3x3)
- Base Part Number ADG884
- detail 2 Circuit IC Switch 2:1 370mOhm 10-LFCSP-WD (3x3)
