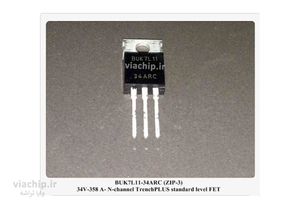

BUK7L11-34ARC,127
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | NXP USA Inc. |
| Package | TO-220-3 |
| Datasheet | BUK7L11-34ARC |
| Description | N-Channel 34V 75A (Tc) 172W (Tc) Through Hole TO-220AB |
فروشنده های BUK7L11-34ARC,127
فروشگاهی یافت نشد
مشخصات BUK7L11-34ARC,127
- Manufacturer NXP USA Inc.
- Series TrenchMOS™
- Packaging Tube
- Part Status Obsolete
- FET Type N-Channel
- Technology MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss) 34V
- Current - Continuous Drain (Id) @ 25°C 75A (Tc)
- Drive Voltage (Max Rds On, Min Rds On) 10V
- Rds On (Max) @ Id, Vgs 11mOhm @ 30A, 10V
- Vgs(th) (Max) @ Id 3.8V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs 53nC @ 10V
- Vgs (Max) ±20V
- Input Capacitance (Ciss) (Max) @ Vds 2506pF @ 25V
- FET Feature -
- Power Dissipation (Max) 172W (Tc)
- Operating Temperature -55°C ~ 175°C (TJ)
- Mounting Type Through Hole
- Supplier Device Package TO-220AB
- Package / Case TO-220-3
- Base Part Number BUK7
- detail N-Channel 34V 75A (Tc) 172W (Tc) Through Hole TO-220AB
