TP2540N3-G-P002
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | Microchip Tech |

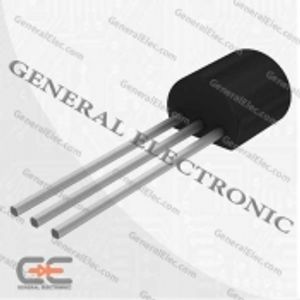

| Package | TO-226-3, TO-92-3 (TO-226AA) |
| Datasheet | TP2540 |
| Description | P-Channel 400V 86mA (Tj) 740mW (Ta) Through Hole TO-92-3 |
فروشنده های TP2540N3-G-P002
فروشگاهی یافت نشد
مشخصات TP2540N3-G-P002
- RoHS true
- Type P Channel
- Category Triode/MOS Tube/Transistor/MOSFETs
- Datasheet Microchip Tech TP2540N3-G-P002
- Operating Temperature -55°C~+150°C@(Tj)
- Power Dissipation (Pd) 740mW
- Drain Source Voltage (Vdss) 400V
- Input Capacitance (Ciss@Vds) 125pF@25V
- Continuous Drain Current (Id) 86mA
- Gate Threshold Voltage (Vgs(th)@Id) 2.4V@1mA
- Drain Source On Resistance (RDS(on)@Vgs,Id) 25Ω@100mA,10V
- Package TO-92-3
- Manufacturer Microchip Tech
- Series -
- Packaging Tape & Reel (TR)
- Part Status Active
- FET Type P-Channel
- Technology MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss) 400V
- Current - Continuous Drain (Id) @ 25°C 86mA (Tj)
- Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
- Rds On (Max) @ Id, Vgs 25Ohm @ 100mA, 10V
- Vgs(th) (Max) @ Id 2.4V @ 1mA
- Vgs (Max) ±20V
- Input Capacitance (Ciss) (Max) @ Vds 125pF @ 25V
- FET Feature -
- Power Dissipation (Max) 740mW (Ta)
- Mounting Type Through Hole
- Supplier Device Package TO-92-3
- Package / Case TO-226-3, TO-92-3 (TO-226AA)
- detail P-Channel 400V 86mA (Tj) 740mW (Ta) Through Hole TO-92-3
