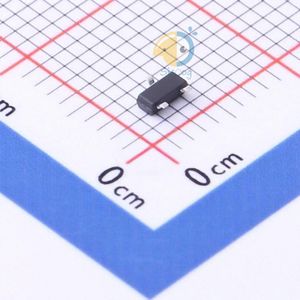

BAV70-MS
In 0 Shop
Price is not yet specified
This product currently has no seller!
| Manufacturer | MSKSEMI |
| Package | --- |
| Datasheet | BAV70-MS |
| Description | --- |
sellers BAV70-MS
The shop was not found
Specifications
- RoHS true
- Category Diodes/Switching Diode
- Datasheet MSKSEMI BAV70-MS
- Power Dissipation 225mW
- Diode Configuration Dual Common Cathode
- Reverse Voltage (Vr) 70V
- Operating Temperature +150°C@(Tj)
- Forward Voltage (Vf@If) 1.25V@150mA
- Reverse Leakage Current 2.5uA@75V
- Reverse Recovery Time (trr) 6ns
- Average Rectified Current (Io) 200mA
- Package SOT-23(TO-236)
- Manufacturer MSKSEMI
