LPC1788FET208,551
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | NXP Semicon |

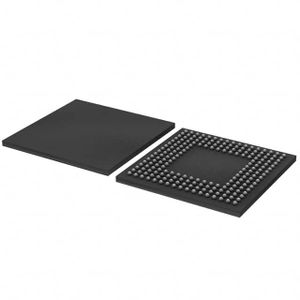

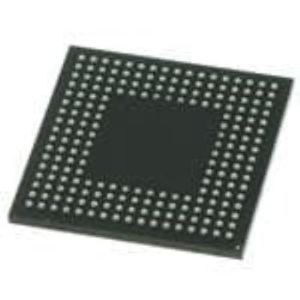

| Package | 208-TFBGA |
| Datasheet | LPC178X,177X |
| Description | ARM® Cortex®-M3 LPC17xx Microcontroller IC 32-Bit 120MHz 512KB (512K x 8) FLASH 208-TFBGA (15x15) |
فروشنده های LPC1788FET208,551
فروشگاهی یافت نشد
تغییرات قیمت
مشخصات LPC1788FET208,551
- RoHS true
- EEPROM -
- CPU Core ARM Cortex-M3
- Category Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- RAM Size 96KB
- Watchdog Yes
- ADC (Bit) 12bit
- DAC (Bit) 10bit
- Datasheet NXP Semicon LPC1788FET208,551
- PWM (Bit) -
- LCD Module Yes
- Real-Time Clock -
- CPU Maximum Speed 120MHz
- GPIO Ports Number 165
- Low-Voltage Detect Yes
- CCP Capture/Compare -
- Internal Comparator -
- Internal Oscillator Yes
- Peripheral/Function DMA;LCD/LED Driver;WDT
- Program Memory Type FLASH
- Direct Memory Access Yes
- Program Storage Size 512KB
- Universal Serial Bus Yes
- communication protocol -
- Operating Voltage Range 2.4V~3.6V
- Infrared Data Association -
- Operating Temperature Range -40°C~+85°C
- Secure Digital Input and Output -
- Package TFBGA-208
- Manufacturer NXP Semicon
- Series LPC17xx
- Packaging Tray
- Part Status Active
- Core Processor ARM® Cortex®-M3
- Core Size 32-Bit
- Speed 120MHz
- Connectivity CANbus, EBI/EMI, Ethernet, I²C, Microwire, Memory Card, SPI, SSI, SSP, UART/USART, USB OTG
- Peripherals Brown-out Detect/Reset, DMA, I²S, LCD, Motor Control PWM, POR, PWM, WDT
- Number of I/O 165
- Program Memory Size 512KB (512K x 8)
- EEPROM Size 4K x 8
- Voltage - Supply (Vcc/Vdd) 2.4V ~ 3.6V
- Data Converters A/D 8x12b; D/A 1x10b
- Oscillator Type Internal
- Operating Temperature -40°C ~ 85°C (TA)
- Mounting Type Surface Mount
- Package / Case 208-TFBGA
- Supplier Device Package 208-TFBGA (15x15)
- Base Part Number LPC17
- detail ARM® Cortex®-M3 LPC17xx Microcontroller IC 32-Bit 120MHz 512KB (512K x 8) FLASH 208-TFBGA (15x15)
