STM32F756BGT6

STM32F756BGT6

STM32F756BGT6

در 3 فروشگاه

مشخصات فنی:
ManufacturerSTMicroelectronics
Package208-LQFP
Datasheet STM32F756xx Datasheet

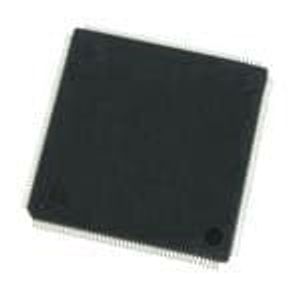

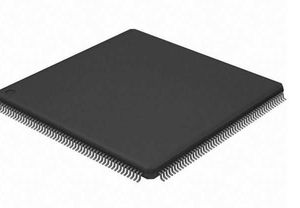

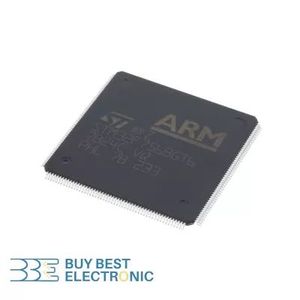

Description ARM® Cortex®-M7 STM32F7 Microcontroller IC 32-Bit 216MHz 1MB (1M x 8) FLASH 208-LQFP (28x28)
تغییرات قیمت
مشخصات
  • Manufacturer STMicroelectronics
  • Series STM32F7
  • Packaging Tray
  • Part Status Active
  • Core Processor ARM® Cortex®-M7
  • Core Size 32-Bit
  • Speed 216MHz
  • Connectivity CANbus, Ethernet, HDMI-CEC, I²C, IrDA, LINbus, MMC/SD, SAI, SPDIFRX, SPI, UART/USART, USB OTG
  • Peripherals Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT
  • Number of I/O 168
  • Program Memory Size 1MB (1M x 8)
  • Program Memory Type FLASH
  • EEPROM Size -
  • RAM Size 320K x 8
  • Voltage - Supply (Vcc/Vdd) 1.7V ~ 3.6V
  • Data Converters A/D 24x12b; D/A 2x12b
  • Oscillator Type Internal
  • Operating Temperature -40°C ~ 85°C (TA)
  • Mounting Type Surface Mount
  • Package / Case 208-LQFP
  • Supplier Device Package 208-LQFP (28x28)
  • Base Part Number STM32F756
  • detail ARM® Cortex®-M7 STM32F7 Microcontroller IC 32-Bit 216MHz 1MB (1M x 8) FLASH 208-LQFP (28x28)
