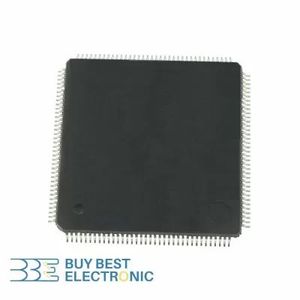

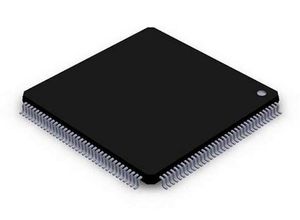

STM32F103ZDT6

STM32F103ZDT6

STM32F103ZDT6

در 4 فروشگاه

مشخصات فنی:
ManufacturerSTMicroelectronics
Package144-LQFP
Datasheet STM32F103xC, D, E Datasheet
Description ARM® Cortex®-M3 STM32F1 Microcontroller IC 32-Bit 72MHz 384KB (384K x 8) FLASH 144-LQFP (20x20)
تغییرات قیمت
مشخصات
  • Manufacturer STMicroelectronics
  • Series STM32F1
  • Packaging Tray
  • Part Status Active
  • Core Processor ARM® Cortex®-M3
  • Core Size 32-Bit
  • Speed 72MHz
  • Connectivity CANbus, I²C, IrDA, LINbus, SPI, UART/USART, USB
  • Peripherals DMA, Motor Control PWM, PDR, POR, PVD, PWM, Temp Sensor, WDT
  • Number of I/O 112
  • Program Memory Size 384KB (384K x 8)
  • Program Memory Type FLASH
  • EEPROM Size -
  • RAM Size 64K x 8
  • Voltage - Supply (Vcc/Vdd) 2V ~ 3.6V
  • Data Converters A/D 21x12b; D/A 2x12b
  • Oscillator Type Internal
  • Operating Temperature -40°C ~ 85°C (TA)
  • Mounting Type Surface Mount
  • Package / Case 144-LQFP
  • Supplier Device Package 144-LQFP (20x20)
  • Base Part Number STM32F103
  • detail ARM® Cortex®-M3 STM32F1 Microcontroller IC 32-Bit 72MHz 384KB (384K x 8) FLASH 144-LQFP (20x20)
