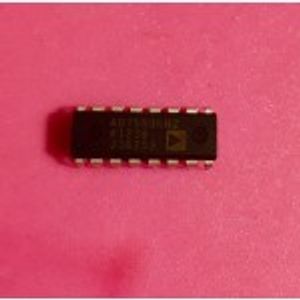

AD7503KNZ

AD7503KNZ

AD7503KNZ

در 1 فروشگاه

مشخصات فنی:
ManufacturerAnalog Devices Inc.
Package16-DIP (0.300", 7.62mm)
Datasheet AD7501-03
Description 1 Circuit IC Switch 8:1 300Ohm 16-PDIP
تغییرات قیمت
مشخصات
  • Manufacturer Analog Devices Inc.
  • Series -
  • Packaging Tube
  • Part Status Obsolete
  • Switch Circuit -
  • Multiplexer/Demultiplexer Circuit 8:1
  • Number of Circuits 1
  • On-State Resistance (Max) 300Ohm
  • Channel-to-Channel Matching (ΔRon) 12Ohm
  • Voltage - Supply, Single (V+) -
  • Voltage - Supply, Dual (V±) ±15V
  • Switch Time (Ton, Toff) (Max) 800ns, 800ns (Typ)
  • -3db Bandwidth -
  • Charge Injection -
  • Channel Capacitance (CS(off), CD(off)) 5pF, 30pF
  • Current - Leakage (IS(off)) (Max) 2nA
  • Crosstalk -
  • Operating Temperature 0°C ~ 70°C (TA)
  • Mounting Type Through Hole
  • Package / Case 16-DIP (0.300", 7.62mm)
  • Supplier Device Package 16-PDIP
  • Base Part Number AD7503
  • detail 1 Circuit IC Switch 8:1 300Ohm 16-PDIP
