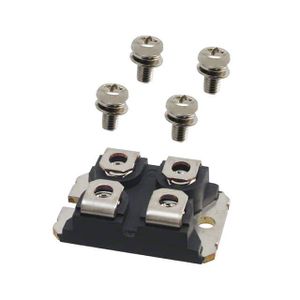

APT53F80J

APT53F80J

APT53F80J

در 4 فروشگاه

مشخصات فنی:
ManufacturerMicrochip Technology
PackageSOT-227-4, miniBLOC
Datasheet APT53F80J
Description ---
تغییرات قیمت
مشخصات
  • Manufacturer Microchip Technology
  • Series POWER MOS 8™
  • Packaging Tube
  • Part Status Active
  • FET Type N-Channel
  • Technology MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss) 800V
  • Current - Continuous Drain (Id) @ 25°C 57A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On) 10V
  • Rds On (Max) @ Id, Vgs 110mOhm @ 43A, 10V
  • Vgs(th) (Max) @ Id 5V @ 5mA
  • Gate Charge (Qg) (Max) @ Vgs 570nC @ 10V
  • Vgs (Max) ±30V
  • Input Capacitance (Ciss) (Max) @ Vds 17550pF @ 25V
  • FET Feature -
  • Power Dissipation (Max) 960W (Tc)
  • Operating Temperature -55°C ~ 150°C (TJ)
  • Mounting Type Chassis Mount
  • Supplier Device Package ISOTOP®
  • Package / Case SOT-227-4, miniBLOC
